CAE700 DUAL BAND BUILDING REPEATER PACKAGE

System gain greater than 75dB!

For Buildings up to 2000 Square Meters

This system is ideal for smaller applications such as offices, homes, small factories or warehouses.

Dual band 900/1800 MHz

For all 900 and 1800 MHz Mobile Phone Carriers throughout Europe

Wireless coverage

CE Approved

From £1799
+ VAT + Shipping

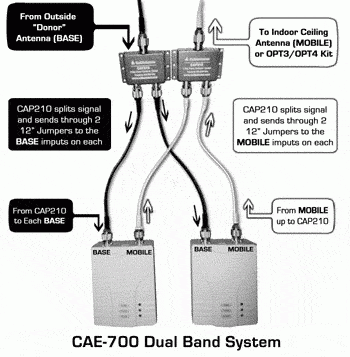

All CAE700 Packages come with all you need to get the system working. Parts include:

CAE700 Package

USHR-1800H DCS 1800MHz In-Building Amplifier USHR-900H GSM 900MHz In-Building Amplifier Dual Band fibreglass Omni Directional External Aerial 1 Ceiling Mounted Multi-Band Omni Directional Aerial 2 15 meters LMR-400 low loss Cables with connectors already attached 4 jumper cables 1 Band Coupler 1 Diplexer Power Supply for the Amplifiers Instructions

CAE700DB-1 UK	GSM Full Band Full Block Dual Band System (UK version) Can handle up to 2000 square meters on 1 floor installation instruction	£1,799.00 + VAT + Shipping
CAE700DB-1 EU	GSM Full Band Full Block Dual Band System (EU version) Can handle up to 2000 square meters on 1 floor installation instruction	£1,799.00 + VAT + Shipping
CAE700DB-2 UK	GSM Full Band Full Block Dual Band System (UK version) Can handle up to 2000 square meters on 1-2 floors	£1,999.00 + VAT + Shipping
CAE700DB-2 EU	GSM Full Band Full Block Dual Band System (EU version) Can handle up to 2000 square meters on 1-2 floors	£1,999.00 + VAT + Shipping
CAE700DB-3 UK	GSM Full Band Full Block Dual Band System (UK version) Can handle up to 2000 square meters on 1-3 floors	£2,099.00 + VAT + Shipping
CAE700DB-3 EU	GSM Full Band Full Block Dual Band System (EU version) Can handle up to 2000 square meters on 1-3 floors	£2,099.00 + VAT + Shipping
CAE700DB-4 UK	GSM Full Band Full Block Dual Band System (UK version) Can handle up to 2000 square meters on 1-4 floors	£2,199.00 + VAT + Shipping
CAE700DB-4 EU	GSM Full Band Full Block Dual Band System (EU version) Can handle up to 2000 square meters on 1-4 floors	£2,199.00 + VAT + Shipping

OPTIONAL EQUIPMENT

CAE300-NLP		CAE300-NLP Surge Filter/ Lightning Protector for CAE700 Best for RF Performance indoor - outdoor use single strike economical lightning protector. Can handle 300 watts of transmission power. Covers 0 - 6 GHz range. Provides against a 20kA surge.	£32.95 + VAT + Shipping
CAF825		CAF825 Omni Directional Outdoor fibreglass Aerial Freq.- 824-960/1710-2500 MHz 3dBi gain	£49.95 + VAT + Shipping
CA-MAST		Universal J-Pipe mount used for mounting our roof mount Yagi and Panel aerials. Can also be used to integrate with our repeater systems. This mount is designed to fit on the side of a house. Either end of the mast can be attached to the base, depending on how much clearance is required for the aerial. Dimensions - 60 x 15 x 15 cm	£25.95 + VAT + Shipping

CAE700 system with one internal antenna can handle up to 2000 square meters on 1 floor. The CAE700-2 system with two indoor antennas can handle two floors, area up to 2000 square meters. The CAE700-3 system, three indoor antennas can cover three floors up to 2000 square meters area.

PLEASE NOTE: THE AREA QUOTED IN THIS SYSTEM DEPENDS ON HAVING A MINIMUM OF 3 OUT OF 5 BARS OF SIGNAL LEVEL (-75dBm) AT THE EXTERNAL AERIAL. THE STATED AREA WILL BECOME SMALLER IF THE SIGNAL LEVEL IS LESS THAN THIS. WE SUGGEST THAT YOU MAKE SURE OF THE SIGNAL LEVELS BEFORE ORDERING AND IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT OUR TOLL FREE NUMBER SHOWN ABOVE.

FAQ:

Do I need to know where the mobile tower is to point the aerial?
There is no need to know this information. The exterior aerial supplied with this system is OMNI directional which means that it 'sees' all signals 360 degrees. It does have to be clear of any obstructions so mount it as high as possible above the roof level.

Do I need to connect my mobile phone directly to the repeater?
No. The system is completely wireless.

I can make a call outside my home, but can't inside. Will the CAE-700 help?
Our building repeater systems are designed especially for this situation. However the signal level outside should be at least 3 out of 5 bars to ensure that the area of coverage will be as we claim.

There are laws that govern the use of these products in various countries. We suggest referring to the governmental organization having jurisdiction. All CAE50 and CAE500 repeater products are offered in Europe through CellAntenna Corporation USA with shipping based on local charges.
